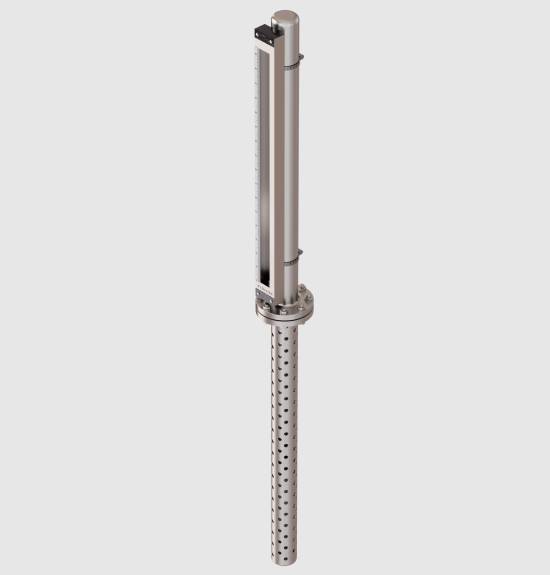

Top Mounted Level Indicator

Top Mounted Level Indicator
Top Mounted Level Indicator
Product Code : FDI-TML-502
Product Description

Being a leading manufacturer, exporter and supplier in this domain, we are involved in offering top grade Top Mounted Level Indicator. This indicator is suitable for measuring pressure level of hazardous & corrosive liquid in horizontal and underground tank. The provided indicator is manufactured under the stern guidance of our diligent technocrats using top grade raw materials. Our valued patrons can purchase this Top Mounted Level Indicator from us at affordable rates within prescribed time frame.

Key Points:

  • Robust built
  • Free from any defect
  • Withstand high pressure
  • Application specific design

Further Details:

Top Mounted Magnetic Level Indicator is a modest principle of mechanics & magnetism connected to provide an unconditionally reliable, safe, & trustworthy level indicator for hazardous & poisonous liquids under elevated temperature and pressure. As the liquid level increases in the tank, the drift is lifted up because of buoyancy. The float conveys a stem involved to it & on the extra side of the stalk a magnet is fitted. The float stem transfers inside the SS enclose. Outside to this ring is a glass tube, that transfers the magnetic follower. Due to magnetic attraction, the magnet on the float stem & the magnetic supporter also passages inside the glass tube and the site of the supporter can be read against the scale.

Technical Details:


Liquids Acids/Alkalies/Solvents/Oils/
Lubricants/Liquid Gases
Stored in Underground or
Over Ground Tanks
Density / Sp. Gravity Minimum 0.6
Temperature Up to 350° C
Tank Hight (Range) Up to 3000 mm
Material of Wetted Parts MS/CS/SS304/304L/316316L PTFE Lined SS/PVC/PP
Connection Flanged to ASA/BS/DIN/
Triclover
Top Mounted Magnetic Level Indicator Viscosity Up to 250 cp
Top Mounted Magnetic Level Indicator Pressure Up to 20 Kg/cm²
Minium Nozzle size required 4” NB for Liquids Below 0.8 Density
