Product Description

Being a trusted manufacturer, exporter and supplier in this domain, we offer the finest grade Glass Tube Rotameter to our prestigious clients. This rotameter is suitable for tiny flow measurement of liquids in various industries like chemical, pharmaceutical, food processing, etc. The provided rotameter is manufactured using top grade raw materials and avant-garde techniques under our experts' guidance. Further, our patrons can get this Glass Tube Rotameter from us at economical rates.

Key Points:

  • Easy to maintain

  • Easy installation

  • Compact size

  • Hassle free functioning

Technical Details:

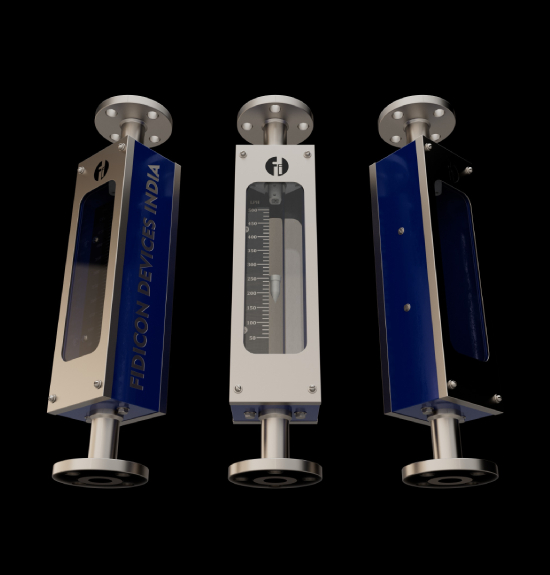

Glass Tube Rotameter (Model No. FDI-GTR-202)
Designed on variable area basis using tapered boro silicate glass tube pressure rating at 10kg cm2 temp at 150oC.
Material of wetted part C.S. S.S. 304 S.S. 316, PP, PVC, PT FE
Line size 15mm NB to 100NB
Flow range 10 to 20,000 LPH of water
Accuracy  % full scale reading
Accessories Screwed, Flanged, House connection

Operating Principle & Standard Features

Various Material of Construction

  • Line Size from 15 NB to 100 NB

  • Heavy Duty Design with Maximum Visibility

  • Ranges between 2.0 LPH to 25000 LPH

  • Two Tone Powder Coated Excellent Finish

  • Easy to Maintain and Replace

  • Suitable for on Line Installation

  • Measuring Span : 1:10

  • Glass : BorosilicateNo Threads in Body, Avoids Corrosion

  • Face-To-Face Distance : 500 mm

  • Single Piece (jointless) PTFE / PP claded end connections

  • Linear Scale

  • Slip on Flange - facilitates change in line of sight

  • Accuracy : +/- 2% of Full Scale

  • SS

SN Parts OPTIONS
A Enclosure MS- Powder Coated SS- Powder Coated SS- Buffed
B Flange - NB 15,  25,  40,  50,  80
C Flange Specifications ASA-150,  BS10-T-E,  BS10 T-F,  Din-10
D MOC Wetted CS,  SS304,  SS316,  CS-PTFE,  CS-PP
E Float - MOC SS316,  PTFE,  PVC,  Aluminium
F Flange - MOC CS,  SS304,   SS316
G PTFE Enve. Gland Packing Nitrite ,  Silicon,  Viton
H Measuring Range in LPH of H2O @ T :- Ambt   /   Pr : - Atm
H Measuring Range in LPH of H2O @ T :- Ambt   /   Pr : - Atm
Glass Size With PTFE Float LPH With SS 316 Float LPH Max. Pressure
Drop in
mmwc 		Test
Pressure
PN 1 2-20 3-30 140 15
PN 2 3-30 6-60
PN 3 4-40 10-100
PN 4 6-60 20-200 350 15
PN 5 8-80 30-300
PN 6 12-120 40-400
PN 7 18-180 60-600
PN 8 20-200 80-800 600 12
PN 9 40-400 100-1000
PN 10 50-500 150-1500
PN 11 80-800 250-2500
PN 12 90-900 300-3000 900 9
PN 13 100-1000 350-3500
PN 14 150-1500 400-4000
PN 15 200-2000 600-6000 900 7
PN 16 250-2500 700-7000
PN 17 400-4000 1000-10000
PN 18 500-5000 1500-15000 900 5
PN 19 600-6000 2000-20000
PN 20 800-8000 2500-25000
