By Pass Rotameter

By Pass Rotameter
By Pass Rotameter
Product Code : FDI-BPR-204
Product Description

As a reputed manufacturer, exporter and supplier in the domain, we meet the exact requirements of our global clients by offering By Pass Rotameter. Manufactured using quality-assured raw material, this rotameter is appreciated for its stable performance. This rotameter is widely used for measuring flow rate of fluids in various industries. Apart from this, our valuable clients can purchase this By Pass Rotameter from us in bulk within committed delivery time.

Key Points:

  • Easy to Maintain
  • On - Line Installation
  • Most Economical,Low Cost
  • Pipe Size - 40 NB to 300 NB
  • For High Flow - 8M / Hr. To 1500M / Hr.
  • Two tone powder coated excellent finish
  • No threads, No leakage, Avoids corrossions
  • Rangeability - 1:10 - 2 : 10
  • Heavy duty design with maximum visibility
  • Various options for material of construction of wetted parts
Operating Principle & Standard Features:

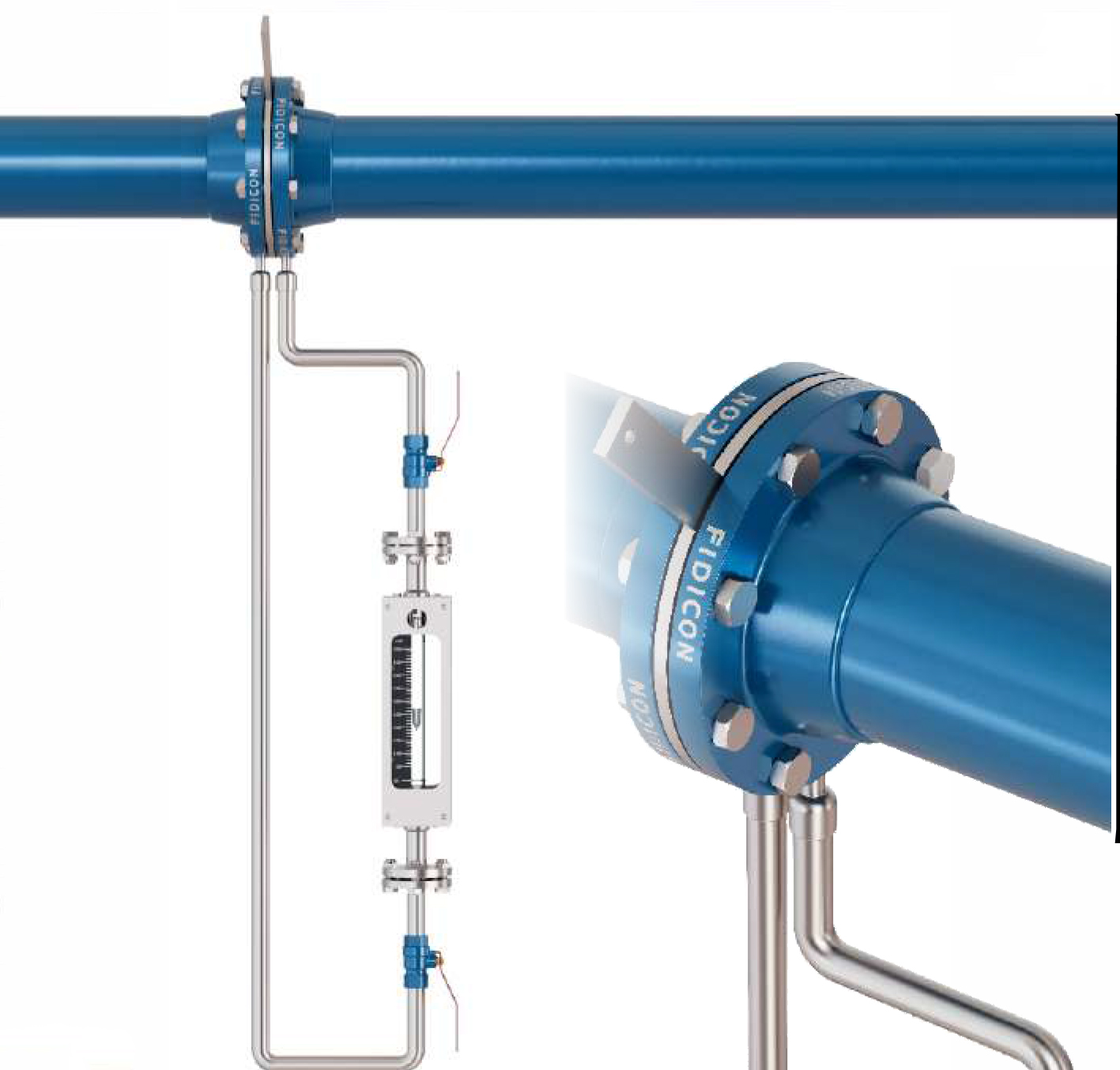

  • Differential pressure ā€˜Pā€™ is formed in the chief Flow by offering an Orifice plate in the key pipeline.
  • Due to this ā€˜Pā€™ a branch of flow transfers via By-Pass line provided across the orifice plate from upstream cross to downstream cross of the Orifice Plate.
  • Extra Range Orifice plate is offered in the By-Pass line that is premeditated such that flow via range Orifice plate flows in amount with the flow via chief orifice plate. Therefore, by calculating the flow from by Pass line we can guess the flow from Core Pipe line.

Technical Details:

By Pass Rota meter (Model No. FDI-BPR-204)
Material of wetted part M.S/C.S./S.S..304/S.S.316
Material of orifice range 25 to 10000M'/ HR of water
Accuracy +1.5 % full scale reading
Accessories Isolation valve
High & low flow alarms
With 4-20mA two wire transmitter
Digital Indicator, Totalizer.


Main Line

NB
MM
PRESSURE DROP METERS OF H2O
1.2
2.5
3.8
5
10
1.2
2.5
3.8
5
10
LIQUID M/ Hr
  AIR NM/ Hr
40
8
12
14
16
22

246
350
425
492
730
50
13
19
22
27
38

407
577
713
815
1206
65
19
27
34
38
54

594
849
1019
115
1699
80
29
40
52
59
83

917
1274
1580
1835
2684
100
59
86
104
120
170

1869
2616
3228
3738
5437
125
95
136
163
188
272

2888
4078
5097
5777
8496
150
136
192
227
272
385

4248
5947
7306
8496
12234
200
227
340
408
476
658

7306
10365
12744
14613
21409
250
363
522
635
749
1044

11554
16482
20390
23109
33984
300
522
749
930
1066
1498

16482
23109
28036
32284
47577
